クイックシフト

The Quick shifter system for the X-BOW manual gearbox will allow you to shorten the movement of your gear shift in order to obtain the optimum shifting times. The travel can be adjusted in longitudinal and transversal direction to suit your own preference. A real increase in performance for the perfect laptime. Fits all models.

スポーツサスペンション

The sports suspension from WP for drivers with sporting ambitions. The dampers have adjustable rebound and compression damping (high and low speed) and are also equipped with a preload adjuster. This allows adjustment of the spring platform by 15 mm. With the help of this suspension, the chassis can be made stiffer and the ground clearance reduced. The following springs are installed ex works: 16 N/mm / 240 mm at the front and 80 N/mm / 185 mm at the rear. Suitable for Street, Clubsport und Superlight models.

レーシングサスペンション

サーキット専用

The racing suspension from WP has adjustable rebound and compression damping (high and low speed). The front damper is 20 mm and the rear damper 10 mm shorter than the sports suspension. The set contains 2x front racing shock absorbers, 2x rear racing shock absorbers and the following springs:

• Front
  • 2x 50 N/mm / 240 mm for wet setup
  • 2x 70 N/mm / 240 mm ex works
  • 2x 90 N/mm / 240 mm for dry setup
• Rear
  • 2x 120 N/mm / 175 mm ex works
  • 2x 140 N/mm / 175 mm for dry setup

Suitable for models with adjustable Push-Rods. Not approved for use on public roads.

アジャスタブルアンチロールバー

Adjustable anti-roll bars for the front and rear wheel suspension. Perfect for fine-tuning the vehicle to the widest variety of track requirements. Adjustable by means of additional bolting points. The front anti-roll bar features three and the rear bar two setting options. The kit includes a set of steering rods with modified steering head angles for the front anti-roll bar. Suitable for all models.

オレンジタイロッドスティフナー

リアサブフレーム強化クロスストラット

The tie rod stiffener is a cross strut that provides additional reinforcement for the rear subframe in the area of the tie-rod connection points. This improves the driving stability, particularly in high-speed curves. Suitable for all models.

メタリックレーシング軽量鍛造セントラルナットアルミホイール（F：17インチ、R：18インチ）

＊セントラルホイールナットコンバージョンキット必須

The racing central nut wheel is forged out of high strength aluminum and a new development for the KTM X-BOW. The extreme styling reflects the main development intention: lightweight design! Resulting in a reduction of 3 kg per wheel or 12 kg of unsprung mass per set compared to the series wheels. The set includes 2x front wheels R17 and 2x rear wheels R18. Fits all models with a central nut wheel hub. The central wheel nut conversion kit (XPP00000985) lets you convert a five-bolt to a central nut wheel hub easily. The racing central nut wheels are approved base on the ECE R124.

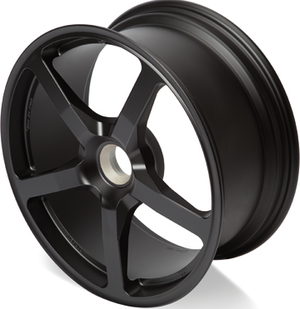

ブラックレーシング軽量鍛造セントラルナットアルミホイール（F：17インチ、R：18インチ）

＊セントラルホイールナットコンバージョンキット必須

The racing central nut wheel is forged out of high strength aluminum and a new development for the KTM X-BOW. The extreme styling reflects the main development intention: lightweight design! Resulting in a reduction of 3 kg per wheel or 12 kg of unsprung mass per set compared to the series wheels. The set includes 2x front wheels R17 and 2x rear wheels R18. Fits all models with a central nut wheel hub. The central wheel nut conversion kit (XPP00000985) lets you convert a five-bolt to a central nut wheel hub easily. The racing central nut wheels are approved base on the ECE R124.

セントラルナットアルミホイール（F：17インチ、R：18インチ）

＊セントラルホイールナットコンバージョンキット必須

The aluminum central nut wheels bring racing technology to the road. The set includes 2x front wheels R17 and 2x rear wheels R18. Fits all models with a central nut wheel hub. The central wheel nut conversion kit (XPP00000985) lets you convert a five-bolt to a central nut wheel hub easily.

5ボルトアルミホイール（F：17インチ、R：18インチ）

The KTM aluminium wheel set guarantees a sporty impression. The set comprises 2x R17 front wheels and 2x R18 rear wheels. Suitable for all models with 5-bolt connection.

BBS軽量アルミホイール（F：18インチ、R：19インチ）+オレンジリムプロテクター

The BBS ultra-light aluminium rim is a design highlight available for the X-BOW. The 5-bolt cross-spoke rims have a dimension of 18 inch at the front axle and 19 inch at the rear. The wheel set is available with a rim protector in stainless-steel or painted in Fusion Orange.

BBS軽量アルミホイール（F：18インチ、R：19インチ）+ステンレススチールリムプロテクター

The BBS ultra-light aluminium rim is a design highlight available for the X-BOW. The 5-bolt cross-spoke rims have a dimension of 18 inch at the front axle and 19 inch at the rear. The wheel set is available with a rim protector in stainless-steel or painted in Fusion Orange.

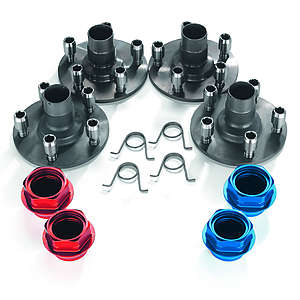

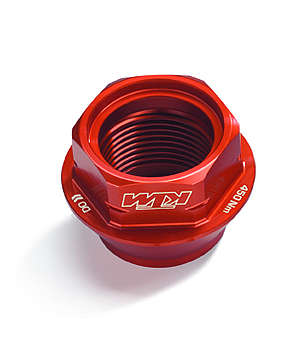

セントラルホイールナットコンバージョンキット

＊セントラルナットアルミホイール必須

Kit to convert a five-bolt to a central nut wheel hub.

ツーリングブレーキパッド

Wether it is in the city, on country or mountain roads. The touring brake pads have a stable braking behaviour at all speeds and temperatures. The noise output is also reduced. The friction level of 0,49μ is in the medium performance level. Fits all models.

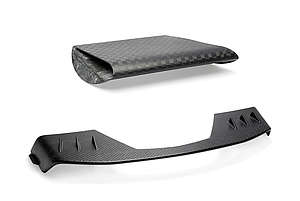

エアロダイナミックパッケージ　1

The Aerodynamicpackage 1 includes a additional front splitter and two flaps. The parts are mounted to the crashbox. When installed the airflow towards the cooling system is optimized and the downforce at the front axle is also increased. KTM recommends cooling upgrades for tuned engines. The aerodynamic upgrades of the package help to keep the temperatures in the cooling system low. All Parts are made from carbon fibre and have the same finish as the monocoque. The Installation at the servicepartner is recommended. Fits all models.

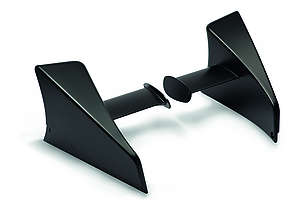

エアロダイナミックパッケージ　2

カーボンフロントフードスポイラー　＊エアロダイナミックパッケージ　3同時装着奨励

The Aerodynamic package 2 includes two front hood spoilers each with two attached flics. The design optimizes the airflow around the wheels. The spoilers and flics increase the downforce on the front axle. Higher lateral acceleration can be achieved, which will lead to quicker cornering and a faster laptime. Due to the increased downforce on the front axle KTM recommends to install the package in combination with the Aerodynamic package 3 (X0808985044). With both packages installed a balanced handling can be achieved easily. All Parts are made from carbon fibre and have the same finish as the monocoque. The Installation at the servicepartner is recommended. Fits all models.

エアロダイナミックパッケージ　3

カーボンリアスポイラー（3段階調整式、LOW/MID/HIGH)

The Aerodynamic-package 3 increases the downforce in the rear through an additional rear spoiler. The spoiler has three predefined settings - low, mid, high - but is also individually adjustable to the preferred setting. It is made from carbon fibre and has the same look as the monocoque. The Installation at the servicepartner is recommended. Fits all models.

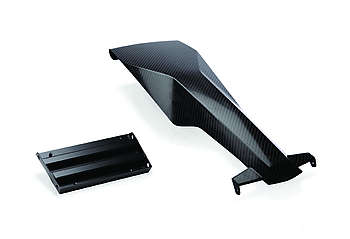

レーシングエアボックス

アルミニウムロールフープコネクションとのセット装着

The second Version of the GT4 Airbox is a lot smaller. The optimized aerodynamics reduce the drag of the X-BOW and lead to a higher top speed. A must have for every ambitious track-day racer. Fits the models Clubsport and GT4. Only fits the models Street and Superlight in combination with the aluminium roll-hoop connection (X0872962044) or the Racing roll structure (XPP00000830).

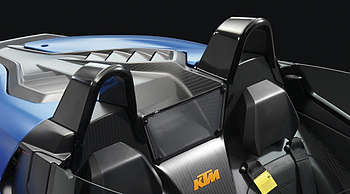

アルミニウムロールフープコネクション

レーシングエアボックスとのセット装着

Aluminium roll-hoop connection required for the racing airbox (XPP00001220).

カーボンフェンダー

The carbon fenders are more than a visual upgrade. They have better aerodynamics through the stiffer material and are also lighter. Set includes racing fenders front and rear for each side. Fits all models except GT4.

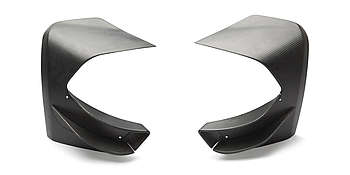

レーシングプロテクションドロップ

モノコック/フロントホイール＆サスペンションプロテクター、カーボン製

The side protection drops from the GT4 vehicle protect the front suspension in the event of side impact. The parts have also been optimised in terms of both weight and aerodynamics. The set contains one protection drop for each side. Modifications to the underbody and monocoque are required for fitting. Suitable for all models.

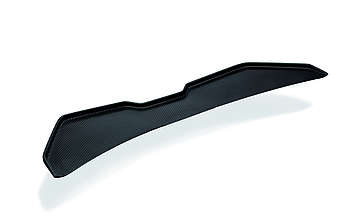

カーボンリアスポイラー

A visual upgrade for the X-BOW is the Carbon rear spoiler. Fits all models.

プロテクションドロップ

モノコック/フロントホイール＆サスペンションプロテクター、FRP製

The side protection drops were developed to prevent wheel entanglement in the racetrack battle. The parts are made from glasfibre reinforced plastics and are optimized in aerodynamics, but heavier than the carbon version. Modifications to the underfloor and monocoque are necessary in order to fit the part to the car. Fits all models.

カーボンアンダーフロアー

The underbody made from carbon composite is a essential part for the downforce of the X-BOW. The set includes a frontsplitter, main underfloor and the rear diffusor, with a Naca-intake for optimized air flow in the engine compartment, in clear coat finish. Fits all models, further information available at your KTM X-BOW service partner.

インテリアパッド

ひざ、脚用、4個入り/2サイズ

Comfort padding for protecting knees and legs when driving for longer periods on the racetrack. The set contains 4x self-adhesive pads in two different sizes for the monocoque interior. Suitable for all models.

ステアリングホイールバック

Bag with Quick Lock system. This bag can be mounted easily in the passenger foot area. The bags volume is extendable from 12 to 18 litres.

ドライバーバック

Keys, mobile phones or money for the toll charge are now always at hand. The watertight X-BOW driver bag stores the most relevant things safely and easily to get to. The bag is attached to the driver’s seat shell with a strong velcro. Also fits to the passenger side and in combination with the co-driver bag. Volume: 1.5 l. Fits all models.

助手席用バック

The X-BOW co-driver bag provides a volume of 14 l. The perfect size for a 2-day trip on weekends. The watertight bag fits in space between the co-driver seat shell and the foot rest. The bag can be used in conjunction with the driver bag (XPP00000390) on the passenger side. Fits the models Street, Superlight and R, as well as the model Clubsport with a detached fire extinguisher.

コンフォートシート

ブラックステッチ/フュージョンオレンジステッチより選択

The comfort seats are a visual and functional highlight of the X-Bow. The seats are made of a weatherproof anti-slip fabric, which is long-living as well as water and dirt-repellent. The thread for the stitching can be ordered in black or Fusion Orange. Upon request almost every colour combination of the seat material and stitching is possible. Fits all models.

GTシフトブーツ

ブラックステッチ/フュージョンオレンジステッチより選択

The matching shift boot for the comfort seats. Upon request almost every colour combination of the fabric and stitching is possible. Fits all models.

GTアルミハンドブレーキレバー

ブラックアルマイト

High quality black anodized handbrake lever made of aluminium. Fits all models.

GTアルミシフトレバー

ブラックアルマイト

Sportive black anodized shift lever made of aluminium. Fits all models.

ユニバーサルデバイスマウント

The universal mount for the X-BOW holds a navigation device or a smartphone. The driver as well as the co-driver can easily reach the mounted devices. The universal mounts’ fixing spots are compatible with all common navigation devices and smartphones. Fits all models.

リモートバッテリーターミナル

The Remote Battery Terminals are mounted in a easy to reach spot in the rear of the vehicle. Recharging or Jump Starting the battery is now as easy as it gets. The Installation at the servicepartner is recommended. Fits all models.

ステアリングホイールロック

Steering wheel lock for vehicles with a detachable steering wheel. The lock can be left locked onto the steering wheel also during driving. Fits all models

スペシャルペイントデザイン

フュージョンオレンジ/オリジナルブルー/コンバットグレー/カーボンブラックより選択

The X-BOW is available in special paint designs. The following options are available:

• Fusion Orange
• Original Blue
• Combat Grey
• Carbon Black
• Individual color

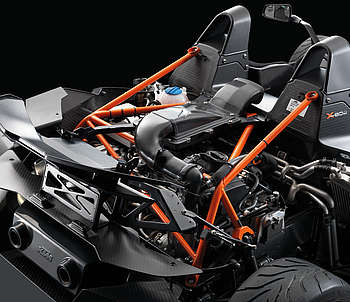

スチールリアスパイダー

The orange chrome-moly steel spider strenghtens the rearframe and increases the torsion stiffness of the X-BOW.
